Made With CNC  |  SKU: HTC01-WG2-WIC

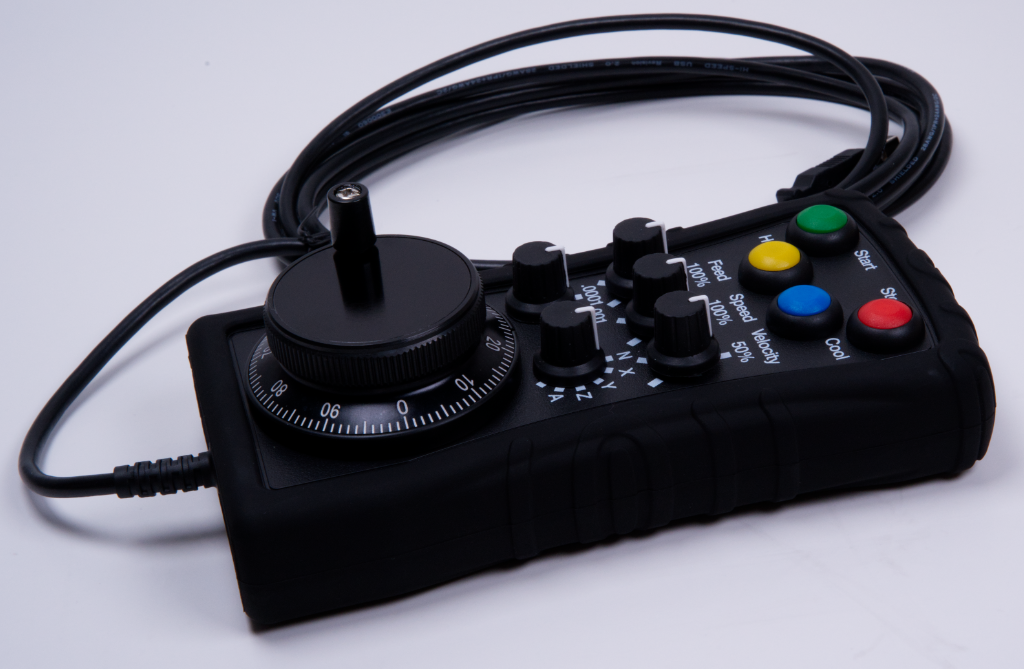

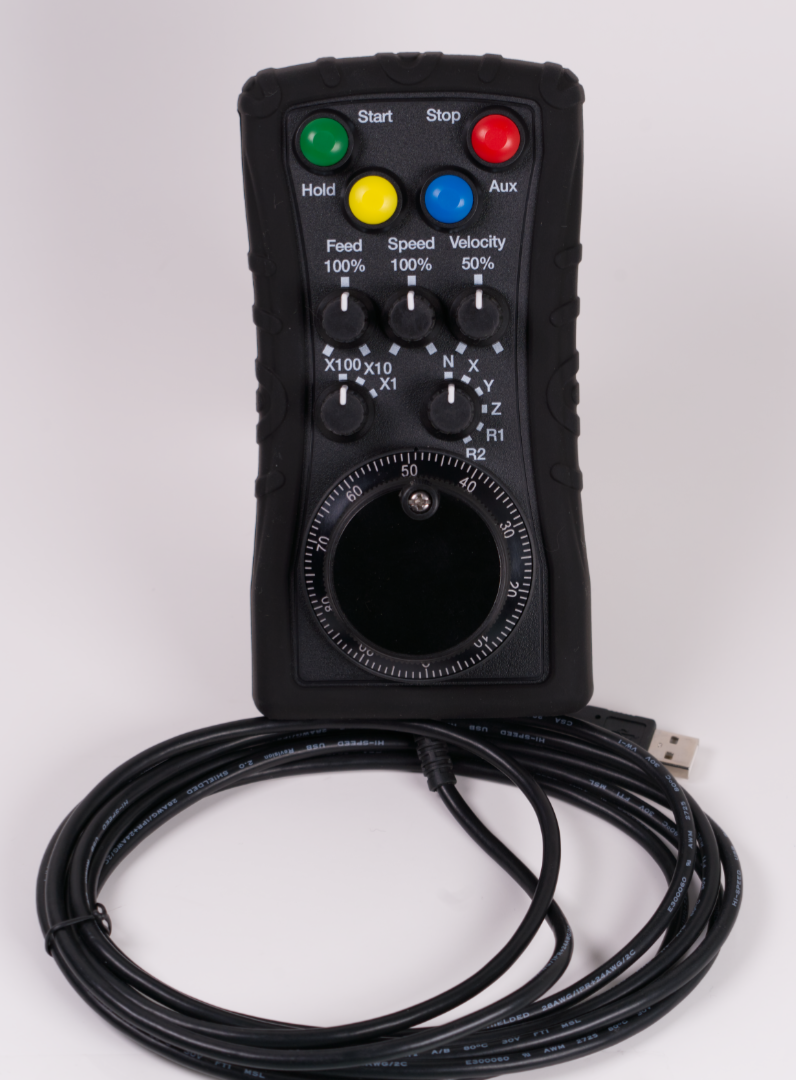

Tormach Path Pilot Hand Held Console

$249.00
Shipping calculated at checkout.


Description

CNC Control Pendant that functions as a hand held console for Tormach Path Pilot CNC machines. It is 100% plug and play, requiring no modifications to the Path Pilot controller software. It connects to Path Pilot via a USB cable.

Includes a black rubber boot and 2 neodymium magnets for securely holding  to your machine.



Requirements:

  • Path Pilot 2.5.1 or higher.
  • 1 Available USB Port on your Path Pilot Controller



Machine Compatibility:

Full plug and play compatibility for machines that Tormach does not offer an Operators Console, is it at Tormach's discretion. Please email support@madewithcnc.com if you have any questions.

  • All M Series Mills**
  • All 770 Series Mills
  • PCNC 440 Mill
  • All Series 3 Mills (PCNC 1100 serial number 2000 or higher)
  • Series 2 Mills that have the Series 3 Motion Control Upgrade installed*
  • 15L Slant Pro and 8L Lathes
  • 24R
  • 1300PL Plasma Table

 *future testing planned to confirm if Series 2 Mills without the Series 3 Motion Control Upgrade are compatible.

** The Hand Held Console is not compatible with machines that have a Tormach Operators Console attached.

Features:

  • Feed Override (0% - 200%)
  • Spindle Speed Override (0% - 200%)
  • Rapid Override (0% - 100%)
  • Jog Axis Selection*
  • Jog Step Selection
  • Jog Wheel
  • Cycle Start Button
  • Feed Hold Button
  • Program Stop
  • Coolant On/Off*

*for machines without coolant, the Coolant On/Off button is non-operational

*consoles with the new labels the R2 axis will select the same axis as R1 for jogging. Path Pilot does not support 2 different rotary axis.



Please note: Made With CNC products are not tested, sponsored, endorsed, nor approved by Tormach Inc.
